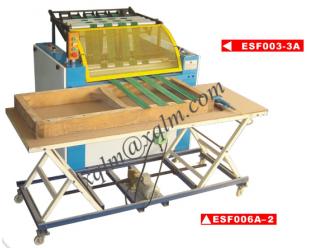

Elastic Belt Tensioning Machine
- Product model：ESF003-3A/B
Product description

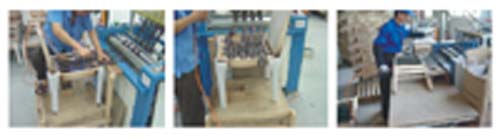

1.There is no tension descrepancies among the belts tensioned.The distance between the belts and the number of the belts to be tensioned can be adjusted accordingly.The length of the belt and the tensioning force can also be adjusted accordingly before operation.2.Operation steps:
Belt feed,nail the at the farther side of a wood-frame,press the button to retract the belt,nail the belt at the near-side frame,and cut off the belt.
| Model | Belt number | Belt outlet width | Belt width | Air pressure | Voltage | Power | Dimensions | Weight |
| ESF003-3A | ≤6 | ≤740mm | ≤80mm | 0.3-0.6Mpa | 380V/220V/50Hz | 0.4Kw | 1200X900X1250 | 350Kg |
| ESF003-3B | ≤8 | ≤1100mm | ≤80mm | 0.3-0.6Mpa | 380V/220V/50Hz | 0.75Kw | 1550X900X1250 | 450Kg |
| Model | Table size | Max capacity | Height | Power/Voltage | Dimensions | Weight |
| ESF006A-2Lifting table | 1800X650mm | ≤80Kg | 500-900mm | 0.4Kw/380V | 1800X650X490mm | 60Kg |
