Sofa Machine

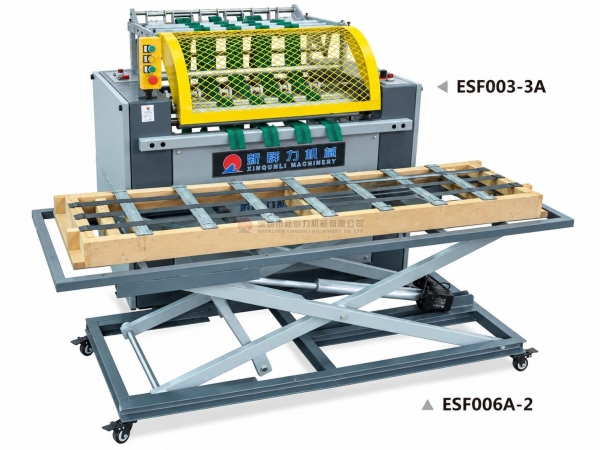

Elastic Belt Tensioning Machine

  • Product model:ESF003-3A/B
Product description
1.There is no tension descrepancies among the belts tensioned.The distance between the belts and the number of the belts to be tensioned can be adjusted accordingly.The length of the belt and the tensioning force can also be adjusted accordingly before operation.
2.Operation steps:
Belt feed,nail the at the farther side of a wood-frame,press the button to retract the belt,nail the belt at the near-side frame,and cut off the belt.

Model Belt number Belt outlet width Belt width Air pressure Voltage Power Dimensions Weight
ESF003-3A ≤6 ≤740mm ≤80mm 0.3-0.6Mpa 380V/220V/50Hz 0.4Kw 1200X900X1250 350Kg
ESF003-3B ≤8 ≤1100mm ≤80mm 0.3-0.6Mpa 380V/220V/50Hz 0.75Kw 1550X900X1250 450Kg

Model Table size Max capacity Height Power/Voltage Dimensions Weight
ESF006A-2Lifting table 1800X650mm ≤80Kg 500-900mm 0.4Kw/380V 1800X650X490mm 60Kg
